8Sinn Top Plate + Right & Left Side Plate for RED V-Raptor

$149.00
In stock
SKU
8-TPR-V-R+8-RSP-RR+8-LSP-RR
Key features:
- three-piece set
- 1/4" mounting points
- Arri locating points (+ 3/8" mounting point)
- Aluminum made

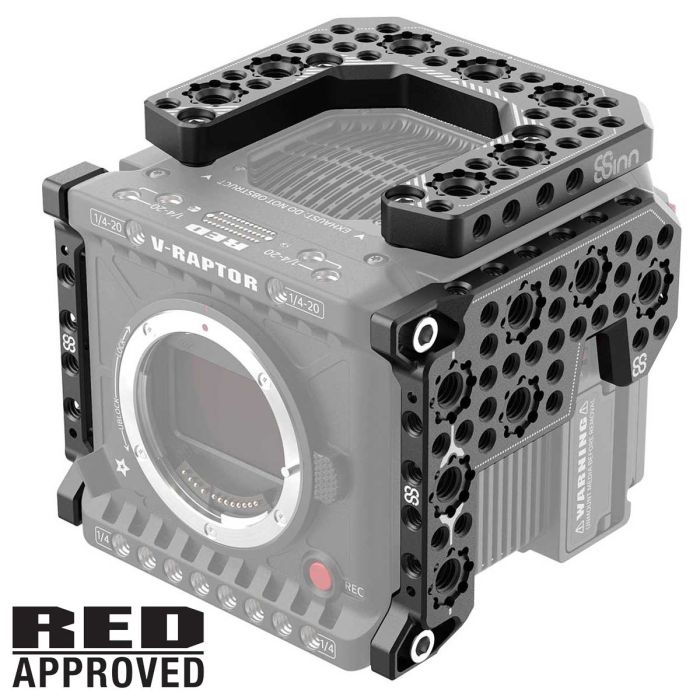

8Sinn Top Plate + Right & Left Side Plate for RED® V-Raptor

8Sinn top plate for RED® V-Raptor is a one-piece plate designed the way all camera accessories can be attached to it. 1/4" and 3/8” Arri threaded holes cover the entire top plate body, allowing free use of nato rails, handles, monitor holders, etc. The top plate is mounted on the camera’s top with 4 screws. It can be attached facing the front or back of the camera, depending on your preferences. What is important, the top plate itself does not adhere to the camera’s body. The only four places where top plates adhere are the places where attachment screws are mounted. Such a solution prevents the Red V-Raptor from unwanted damage as well as ensures; good air circulation.

8Sinn reversible right side plate dedicated to the RED® V-Raptor camera is a left/right side plate. That is it can be mounted not only on the camera’s left but also right side. The plate is attached to the camera by 2 screws. The only two places where the plate adheres to the camera’s body is the place where screws are attached. 8Sinn RED® V-Raptor plate is equipped with many mounting points: 1/4" as well as 3/8” Arri locating points.

8Sinn Left side plate for the RED® V-Raptor camera is an air-aluminum plate that was designed specifically to be mounted on the Red V-Raptor camera’s right side. The right side plate is full of various mounting points both 1/4" and 3/8” Arri. It doesn’t cover crucial camera elements like vents. 8Sinn guarantees full access to all camera ports, plugs, inputs, and outputs.

If needed, 3/8" openings can be easily transformed into 1/4" with the use of a reduction screw, also available at the 8Sinn store.

Set includes: 1pc 8Sinn Top Plate for RED® V-Raptor, 1pc 8Sinn Right Side Plate for RED® V-Raptor, 1pc 8Sinn Left Side Plate for RED® V-Raptor
Dimensions of 8Sinn Top Plate for RED® V-Raptor: Height: 94,5mm, Length: 112mm, Width: 13mm
Dimensions of 8Sinn Right Side Plate for RED® V-Raptor: Height: 104mm, Length: 28mm, Width: 12mm
Dimensions of 8Sinn Left Side Plate for RED® V-Raptor: Height: 104mm, Length: 112mm, Width: 12mm
Weight of the set: 275g
