8Sinn 15mm Baseplate + Riser Plate Basic

$172.00

In stock

SKU

8-15BP+8-RPB

Key features - baseplate:
- 2 x 32mm Arri Rosettes
- 15mm rod compatible
- 3 x thumbscrews
- 6 x 1/4" threaded openings
- Dovetail guide rails (bottom)

Key features - riser plate:
- 1/4" and 3/8" mounting screw
- Rubber pads

Details

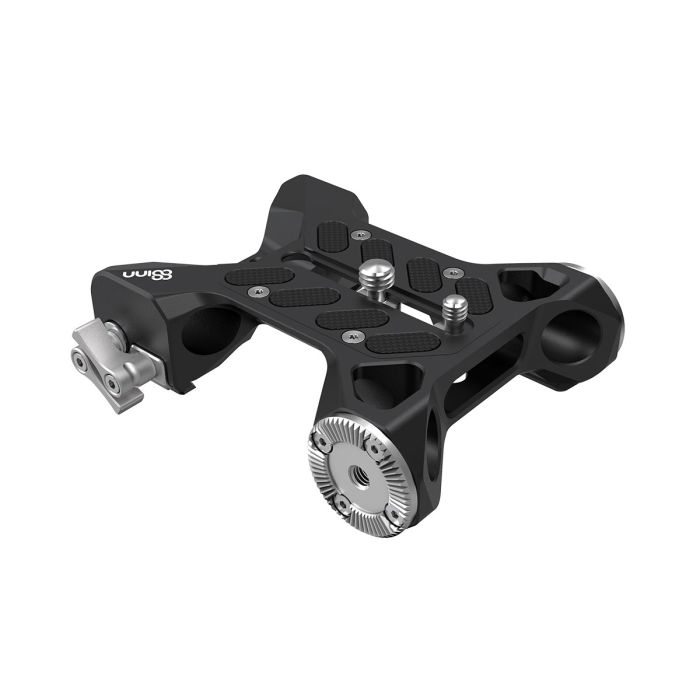

8Sinn 15mm Baseplate + Riser Plate Basic

The following page presents you with the set of two 8Sinn accessories - Base Plate and Riser Plate version Basic. The whole configuration provides you with many features and the opportunity for further development.

Obtaining the 85mm optical center with the Riser Basic and 15mm Baseplate is possible in two ways - with or without the cage.

Compatible cameras when used without the 8Sinn cage:
The presented Riser Plate combined with the 8Sinn Base Plate allows obtaining the optical center when used with the following cameras:
- Blackmagic URSA Mini
- Canon EOS C100
- Sony FX-9

Compatible cameras when used with 8Sinn cage:
- Canon C70
- 8Sinn Half Cage for BMPCC 6K Pro

Dimensions: Length: 120mm, Width: 81mm (108mm with the thumbscrews), Height: 32mm, Weight: 257g
Set includes: 1pc 8Sinn 15mm Baseplate, 1pc Riser Plate Basic
