8Sinn Top Plate for RED V-Raptor

$59.00
In stock
SKU
8-TPR-V-R
Key features:
- 4 points of plate-to-camera attachment
- 1/4" mounting points
- 3/8" mounting points + Arri locating points
- Mounting forwards or backwards
- Aluminum made

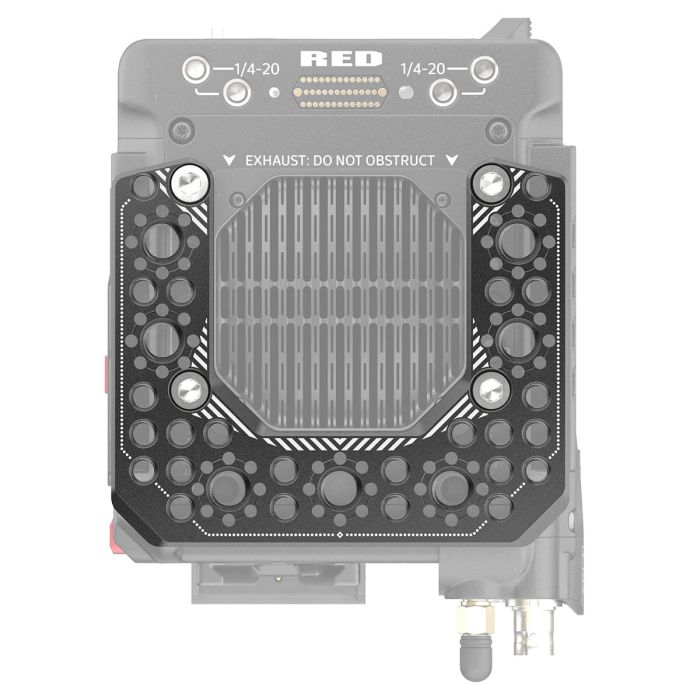

8Sinn Top Plate for RED® V-Raptor

8Sinn Top Plate for RED® V-Raptor is a one piece plate designed the way all camera accessories can be attached to it. 1/4" and 3/8” Arri threaded holes cover the entire top plate body, allowing free use of nato rails, handles, monitor holders etc. If needed, 3/8" openings can be easily transformed into 1/4" with the use of a reductions screw, also available at the 8Sinn store. The top plate is mounted on the camera’s top by 4 screws. It can be attached facing front or back of the camera, depending on your preferences. What is important, the top plate itself does not adhere the camera’s body. The only four places where top plates adheres it are the placed where attachment screws are mounted. Such solution prevents the RED® V-Raptor from unwanted damage as well as ensures good air circulation.

Dimensions: Height: 94,5mm, Length: 112mm, Width: 13mm; Weight: 113,23g
Set includes: 1pc 8Sinn Top Plate for RED® V-Raptor
