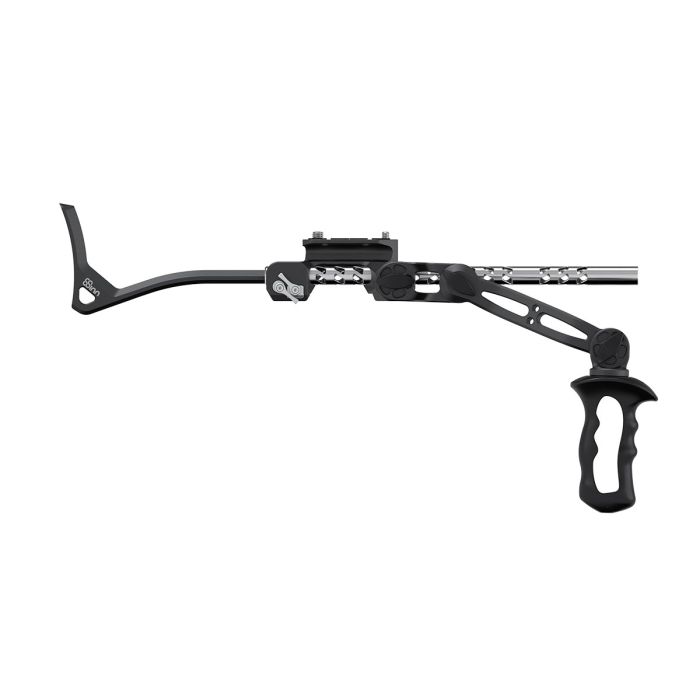

8Sinn Shoulder Rig Kit

$699.00
In stock
SKU
8-SRK
Following kit includes:
1 set - 8Sinn 15mm Baseplate + Riser Plate I
2 sets - 8Sinn Side Arm for Shoulder Rigs + Dual Side Grip
1 pc - 8Sinn Shoulder Support

- Optional 15mm rods:
NEW
8Sinn Shoulder Rig Kit

Baseplate features:
- 2 x 28mm Arri Rosettes
- 15mm rod compatible
- 3 x thumbscrews
- 4 x 1/4" threaded openings
- 60mm center-to-center distance
- Dovetail guide rails (bottom)

Riser Plate I features:
- 2 x 1/4" mounting screw
- 3/8" mounting screw
- Rubber pads
- Aluminum made

Shoulder Support features:
- Aluminum made
- Lightweight
- 3 x 3/8" Arri locating points
- Knurled rear surface
- Slender profile
- 1/4"-20 x1/2"(12mm) mounting screws

Rod Mount Bridge features:
- 15mm rod compatible
- 6 x 1/4" threaded mounting points
- Aluminum made
- 60mm center-to-center distance
- Thumbscrew on each side

Compatibility:
Riser Plate I, included in this kit allows to obtain the optical center when used with the following cages:
8Sinn Z CAM E2-S6/F6/F8 Cage
8Sinn Z CAM E2 Cage
8Sinn Sony a7III / a7RIII Cage
8Sinn Sony A7RIV Cage
8Sinn BM Pocket Cinema Camera 4K / 6K Cage
8Sinn BM Pocket Cinema Camera 4K / 6K Half Cage
8Sinn Red Komodo Cage

Specifications:weight: 1.070 kg (+ rods)
